Description

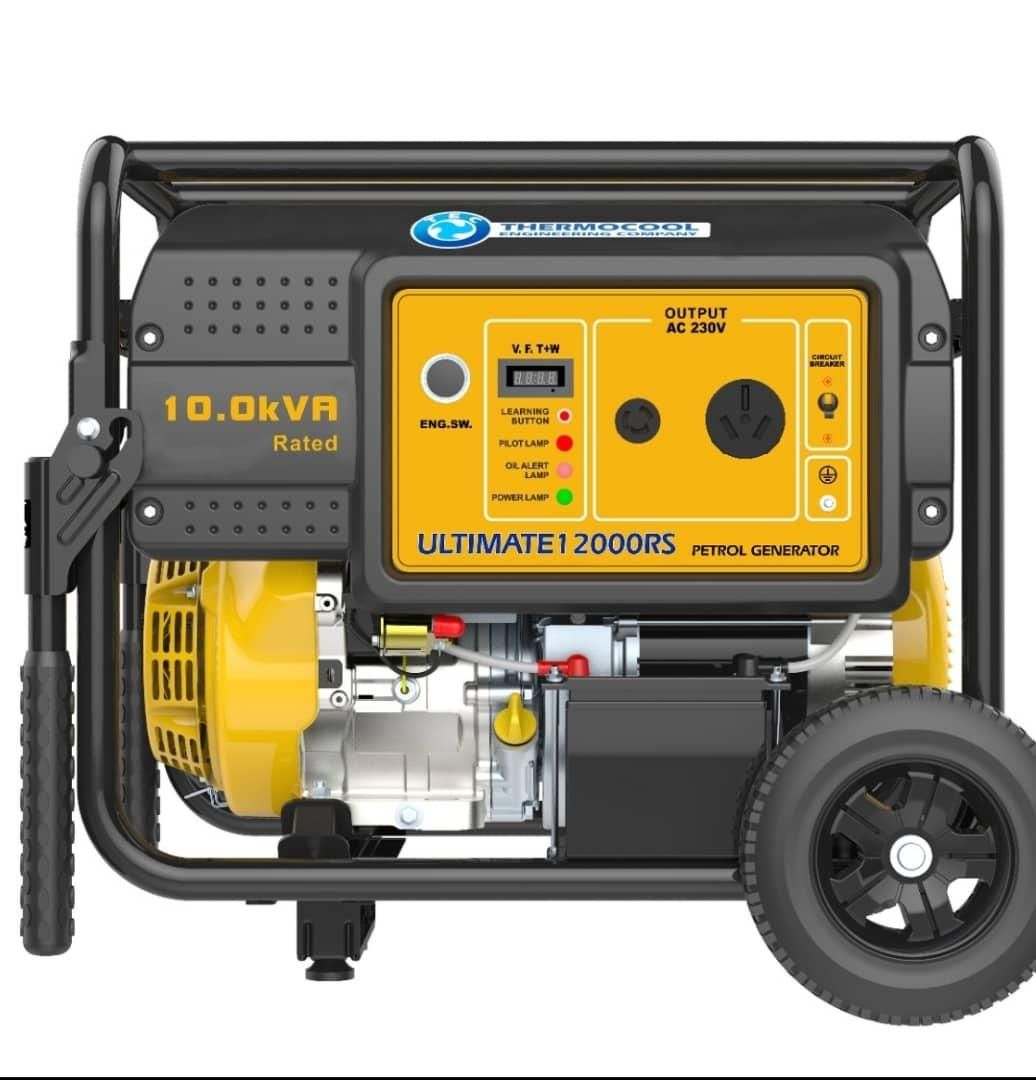

Overview of Haier Thermocool TEC 12000RS 10KVA Generator:
Enjoy uninterrupted power suppliers with the latest Haier Thermocool generator TEC Ultimate 12000RS 10KVA. Have you ever thought of cutting down on your electricity costs? Tec generator gives affordable, uninterrupted backup power for your home or office. It offers the perfect combination of top performance and low pricing Generators. Generators are mechanical devices that convert mechanical energy into electrical energy. Thus, forces electric current to flow through an external circuit. They come with automatic voltage regulators so you are assured of a steady flow of power without undue fluctuations. Take a look at our collection of Haier Thermocool Tec generators and get one so you never have to be without power again. The haier thermocool 10kva generator comes with a remote start and electric start(key start) as well as a manual start(recoil).
| Performance | |
| Power Output (Max) : W | 8500 |
| Voltage : V | 230 |
| Current : A | 34.0 |
| Frequency : Hz | 50 |
| Voltage DC : V | 12 |
| Current DC : A | 8.3 |
| Fuel consumption : L/(Kw.h) | 0.49 |
| Power factor : cosɸ | 1 |
| Fuel consumption (rated output) : L/h | 3.7 |
| Noise level (7m from front side) : dB(A) | 76.2 |
| Design life : Hours | 1000 |
| Other | |
| Power Output (Rated) | 8000 |
| Fuel tank capacity | 25L |
| Electrical | |
| Start method | Electric+Recoil+Remote |
| Socket | Locking, 2 |
| Plug | Locking plug |
| Battery type | BS, 14 Ah |
| Remote controller | Yes |
| One touch start | Yes |
| ATS | No |
| Engine | |
| Cooling style | Forced air cooling |
| Cylinder Qty | Single |
| Stroke : mm | 66 |
| Displacement : cc | 439 |
| Max Power : kw/rpm | 9.8 |
| Smart throttle | Yes |
| Compression ratio | 8.9.1 |
| Oil capacity : L | 1.1 |
| Carburetor automatic fuel shut-off | Yes |
| Low oil shut down | Yes |
| Recoil starter handle direction | 10 o’clock |
| Fuel Recommended : # | 90#/93# |
| Gasket–Asbestos free | Yes |
| Certification | |
| Safety Standard | SONCAP |
| Standart conformed | ISO9001 |
| Emission level | Euroll |
| Alternator | |
| Rotor Windings | Copper |
| Stator Windings | Copper |
| Excitation | Carbon brush |
| Panel | |
| Main Circuit Breaker : A | 34 |
| DC output | Yes |
| Engine Switch | Push |
| Sockets | 2 |
| Voltmeter, VFT 3 in 1 | Yes |
| Vibration absorber | 4 |
| Fuel tank | |
| Full load continuous running time : Hours | 6.6 |
| Fuel level indicator | Yes |
| Package | |
| Packing (W*H*D) : mm | 700×530×595 |
| Dimension(W*H*D) : mm | 680×510×564 |
| Accessories Option | |
| Manual | Yes |
| Hardware Tooling | Yes |
| Warranty Card | Yes |
| DC wire | Yes |
| Oil | Yes |
| Plug | Yes |
| Oil Funnel | Yes |
